Banjo fittings are small but very important parts used in fluid systems. They are widely used in industries such as automotive, hydraulics, motorcycles, and heavy machinery. Even though they look simple, banjo fittings play a critical role in allowing fluid to move safely and efficiently through tight spaces.
If you have ever worked with brake systems, fuel lines, or hydraulic equipment, you have likely seen or used a banjo fitting. These fittings are designed to provide a secure connection while also allowing fluid to pass through at different angles.
In this complete guide, you will learn everything about banjo fittings in very simple and easy language. We will explain what a banjo fitting is, how it works, types, materials, installation methods, common uses, and where to buy banjo fittings in the US. This guide is written to help beginners as well as professionals.
What Is a Banjo Fitting?
A banjo fitting is a special type of pipe fitting that allows fluid to pass through a connection point while also enabling flexible positioning of hoses or tubes.
The name “banjo” comes from its shape. The fitting has a round section with a hole through it, and it looks similar to a musical banjo. This round part is connected to a bolt, called a banjo bolt, which allows fluid to pass through.
So, when someone asks what is a banjo fitting, the simple answer is:
A banjo fitting is a hollow bolt and round connector used to transfer fluid in tight or angled spaces.
What Are Banjo Fittings Used For
Banjo fittings are used in many systems where fluid needs to move under pressure. They are especially useful when space is limited or when hoses need to bend at sharp angles.
Common uses include:
Automotive brake systems
Fuel lines in cars and motorcycles
Hydraulic systems in machinery
Oil lines and lubrication systems
Industrial equipment
In all these applications, banjo fittings help create a strong, leak-free connection.
How Does a Banjo Fitting Work
Understanding how does a banjo fitting work is very important if you want to install or use one correctly.
A banjo fitting works by allowing fluid to flow through a hollow bolt and into a round connector. The connector has holes that align with the bolt, so fluid can pass through easily.
Here is a simple step-by-step explanation:
First, the banjo bolt is inserted through the round part of the fitting
Then, washers are placed on both sides to prevent leaks
The bolt is tightened into a threaded hole
Fluid flows through the bolt and exits through the side hole into the connected hose
This design allows fluid to move even when the hose is positioned at an angle.
Also Read: Fitness 2020 McDonough: Complete Guide to Memberships, Classes, Reviews, and Results
Parts of a Banjo Fitting
To understand banjo fittings better, it helps to know their main parts.

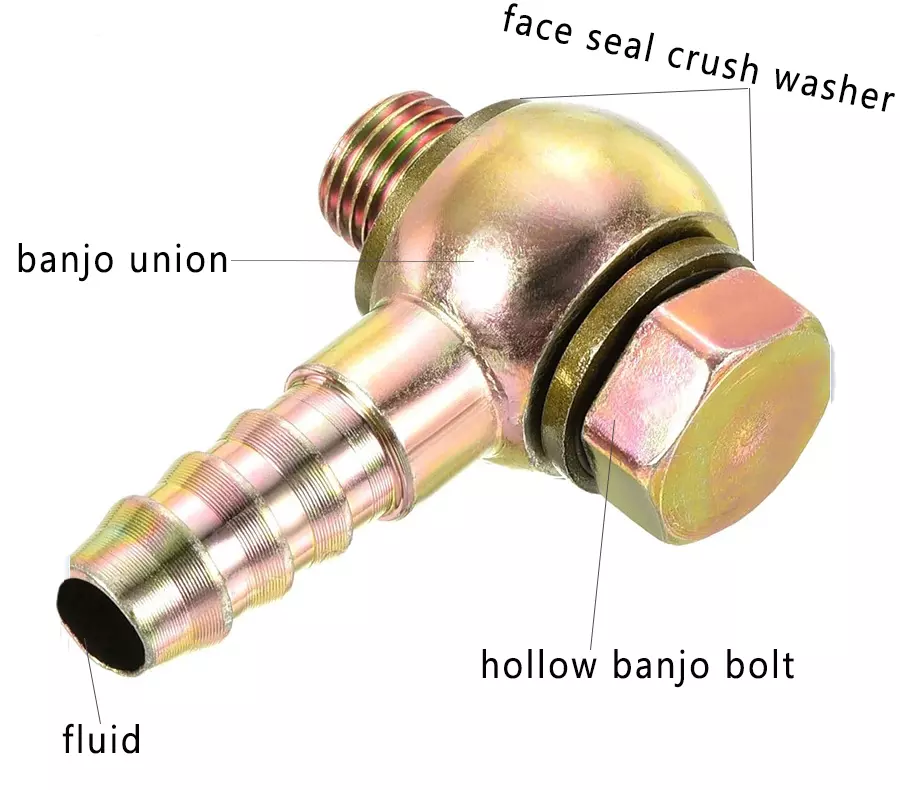

Banjo bolt
This is a hollow bolt with holes that allow fluid to pass through
Banjo fitting body
This is the round part that connects to the hose or pipe
Sealing washers
These are usually made of copper or aluminum and prevent leaks
Threaded connection
This is where the bolt screws into the system
Each part works together to ensure a secure and leak-free connection.
Types of Banjo Fittings
There are different types of banjo fittings available depending on the application.
Standard Banjo Fittings
These are the most common and are used in automotive and general fluid systems. They are simple and reliable.
Hydraulic Banjo Fittings
Hydraulic banjo fittings are designed to handle high pressure. They are used in heavy machinery and industrial systems.
They are stronger and made from high-quality materials to handle extreme conditions.
Double Banjo Fittings
These fittings allow two connections from one bolt. They are useful when you need to connect multiple lines in a small space.
Angled Banjo Fittings
These fittings come in different angles such as 45 degrees or 90 degrees. They help route hoses in tight or complex spaces.
Materials Used in Banjo Fittings
Banjo fittings are made from different materials based on their use.
Steel
Strong and durable, used in high-pressure systems
Stainless steel
Resistant to rust and corrosion, ideal for long-term use
Brass
Good for low-pressure systems and easy to install
Aluminum
Lightweight and commonly used in motorcycles and performance vehicles
Choosing the right material is very important for safety and performance.
Advantages of Banjo Fittings
Banjo fittings offer many benefits compared to other types of fittings.
They save space in tight areas
They allow flexible hose positioning
They provide strong and leak-proof connections
They are easy to install and remove
They work well in high-pressure systems
Because of these advantages, banjo fittings are widely used in many industries.
Disadvantages of Banjo Fittings
Even though they are useful, banjo fittings also have some limitations.
They require proper installation to avoid leaks
Washers need to be replaced when reused
They may not be suitable for extremely high vibration environments
Incorrect sizing can cause system failure
Understanding these disadvantages helps you use them more effectively.
How to Install Banjo Fittings
Installing banjo fittings correctly is very important to prevent leaks and ensure safety.
Follow these simple steps:
Make sure all parts are clean
Place a washer on the bolt
Insert the bolt through the banjo fitting
Add another washer on the other side
Insert the bolt into the threaded hole
Tighten the bolt carefully
Do not over-tighten, as this can damage the washers or threads.
Also Read: Pantagonar: The Complete Guide to Strategic Technology Alignment for Modern Businesses
Common Mistakes to Avoid
When working with banjo fittings, people often make mistakes that can cause problems.
Using old or damaged washers
Over-tightening the bolt
Using the wrong size fitting
Not aligning the holes properly
Ignoring leaks after installation
Avoiding these mistakes will help your system work properly.
How to Choose the Right Banjo Fitting
Choosing the right banjo fitting depends on several factors.
Pressure requirements
Material compatibility
Thread size and type
Angle and space available
Type of fluid being used
Always check specifications before buying.
Banjo Fittings in Automotive Systems
Banjo fittings are very common in cars and motorcycles.
They are used in brake lines, fuel systems, and oil lines. In brake systems, they are especially important because they help maintain pressure and ensure safety.
If a banjo fitting fails in a brake system, it can lead to serious problems. That is why proper installation and maintenance are very important.
Hydraulic Banjo Fittings Explained
Hydraulic banjo fittings are specially designed for high-pressure systems.
They are used in construction equipment, agricultural machinery, and industrial systems. These fittings must be strong and durable to handle high pressure.
They are often made from steel or stainless steel and are tested for safety.
Banjo Fittings vs Traditional Fittings
Banjo fittings are different from traditional fittings.
Traditional fittings connect pipes in straight lines. Banjo fittings allow fluid to flow even when the hose is angled.
This makes them more flexible and useful in tight spaces.
Maintenance Tips for Banjo Fittings
To keep banjo fittings working properly, regular maintenance is important.
Check for leaks regularly
Replace washers when needed
Keep fittings clean
Avoid over-tightening
Inspect for corrosion or damage
Good maintenance increases the life of your fittings.
Where to Buy Banjo Fittings
If you are wondering where to buy banjo fittings, there are many options available in the US.
You can find them at:
Auto parts stores
Hardware stores
Hydraulic supply shops
Online marketplaces
If you search for banjo fittings near me, you will likely find local suppliers who can help you choose the right product.
Buying from trusted suppliers ensures quality and safety.
Cost of Banjo Fittings
The cost of banjo fittings depends on material, size, and type.
Basic fittings are affordable
Hydraulic banjo fittings cost more due to higher strength
Stainless steel fittings are more expensive but last longer
It is better to invest in quality rather than choosing the cheapest option.
Safety Considerations
Safety is very important when using banjo fittings.
Always use the correct size
Never reuse damaged washers
Check for leaks after installation
Use proper tools
Follow manufacturer instructions
These steps help prevent accidents and system failure.
Future Trends in Banjo Fittings
Banjo fittings are evolving with new technology.
Manufacturers are using better materials
Designs are becoming more efficient
Improved sealing systems are being developed
Lightweight and corrosion-resistant options are increasing
These advancements make banjo fittings more reliable and efficient.
Also Read: Plangud: The Smart Task and Project Management
Expert Insights on Banjo Fittings
Many professionals prefer banjo fittings because of their flexibility and reliability.
From my analysis, one of the biggest advantages is their ability to work in tight spaces without compromising fluid flow. This makes them essential in modern engineering designs.
Also, proper installation is often more important than the fitting itself. Even the best banjo fitting can fail if installed incorrectly.
How to Fit a Banjo Strap
Although this guide focuses on fittings, some people confuse this with how to fit a banjo strap for musical instruments.
A banjo strap is attached to support the instrument while playing. It is not related to mechanical banjo fittings.
Make sure you understand the difference when searching for information.
Frequently Asked Questions
What is a banjo fitting used for in brake systems?
Banjo fittings are used to connect brake lines while allowing fluid to flow under pressure. They help maintain braking performance and safety.
Can banjo fittings handle high pressure?
Yes, hydraulic banjo fittings are specifically designed to handle high pressure in industrial and heavy-duty systems.
Do banjo fittings leak easily?
No, they do not leak if installed correctly with proper washers. Most leaks happen due to poor installation.
Are banjo fittings reusable?
The fitting itself can be reused, but washers should usually be replaced to ensure a proper seal.
How do I know the correct size of a banjo fitting?
You need to check the thread size, bolt diameter, and hose size. Always refer to manufacturer specifications.
Can I install banjo fittings without professional help?
Yes, but you must follow proper steps and safety guidelines. If unsure, it is better to consult a professional.
What is the difference between a banjo fitting and a regular fitting?
Banjo fittings allow angled connections and fluid flow through a hollow bolt, while regular fittings usually connect straight pipes.
Are stainless steel banjo fittings better?
They are more durable and resistant to corrosion, making them ideal for long-term use.
How often should banjo fittings be checked?
It is recommended to inspect them regularly, especially in high-pressure systems.
Where can I find banjo fittings near me?
You can search online or visit local auto parts stores, hardware shops, or hydraulic suppliers in your area.
Conclusion
Banjo fittings are small but powerful components that play a major role in fluid systems. They provide flexibility, reliability, and efficiency in many applications.
Whether you are working with automotive systems, hydraulic equipment, or industrial machines, understanding banjo fittings helps you make better decisions.
By choosing the right fitting, installing it correctly, and maintaining it properly, you can ensure long-lasting performance and safety.
This guide has provided a complete and easy-to-understand explanation of banjo fittings, including what they are, how they work, and where to buy them.
If you apply this knowledge, you will be able to use banjo fittings with confidence and achieve better results in your projects.
